L801P Mustcam Indoor Wired/Wireless Pan/Tilt Network IP Camera, IR-Cut, H.264 (720P) Video Format
Model No: L801P
P2P, Plug and Play
H.264, 720P
Embedded IR-Cut Filter
TF-card slot
IR Night Vision Range up to 8m
Two-Way Audio Monitoring
Digital Remote Pan / Tilt Control
Motion Detection / Alarm
Embedded Mic & Speaker
H.264, 720P
Embedded IR-Cut Filter
TF-card slot
IR Night Vision Range up to 8m
Two-Way Audio Monitoring
Digital Remote Pan / Tilt Control
Motion Detection / Alarm
Embedded Mic & Speaker
This smart while easy to use IP camera enables you to stay connected to everything that you love 24/7. With IR LEDs that enable you to see what is going on even when there is little up to 5 meters (16.4 feet), it allows you to easily view and manage the camera from virtually anywhere over the Internet.
Utilizing H.264 compression, the camera allows you to deliver stunning video quality and save more video footage than traditional compression methods thus giving you up to 2X more storage.
With its friendly-designed app, you can control your IP cameras on the iPhone or make settings. Take access to your cameras over your home network or over the internet. So you can easily check up your cameras or use them as baby monitors. All functions and controls are integrated in an intuitive and visually attractive interface.
Utilizing H.264 compression, the camera allows you to deliver stunning video quality and save more video footage than traditional compression methods thus giving you up to 2X more storage.
With its friendly-designed app, you can control your IP cameras on the iPhone or make settings. Take access to your cameras over your home network or over the internet. So you can easily check up your cameras or use them as baby monitors. All functions and controls are integrated in an intuitive and visually attractive interface.
P2P, Plug and Play
H.264, 720P
Embedded IR-Cut Filter
TF-card slot
IR Night Vision Range up to 8m
Two-Way Audio Monitoring
Digital Remote Pan / Tilt Control
Motion Detection / Alarm
Embedded Mic & Speaker
H.264, 720P
Embedded IR-Cut Filter
TF-card slot
IR Night Vision Range up to 8m
Two-Way Audio Monitoring
Digital Remote Pan / Tilt Control
Motion Detection / Alarm
Embedded Mic & Speaker
| Specification |
|
|
| Image Sensor | Image Sensor | 1/4" CMOS Sensor |
| Display Resolution | 720P(1280*720P) | |
| Lens | f:6mm, F:2.0, Built-in IR Fliter | |
| Minimum Lux Required | 0.5lm for Normal Operation | |
| Lens | Lens Type | Glass Lens |
| Viewing Angle | 60degree | |
| Audio | Input |
1)Built-in Microphone / One Channel Audio Input 2) Audio Input Jacket for external Microphone |
| Output | One Channel Audio Output(earphone jacket) | |
| Audio Compression | ADPCM | |
| Video | Image Frame Rate | 20fps(720P), 30fps(QVGA) |
| Resolution | 1280x720(720P),640x480(VGA), 320x240(QVGA) | |
| Flip Mirror Images | Vertical / Horizontal | |
| Frequency | 50Hz, 60Hz, Outdoor | |
| Video Parameters | Brightness, Contrast | |

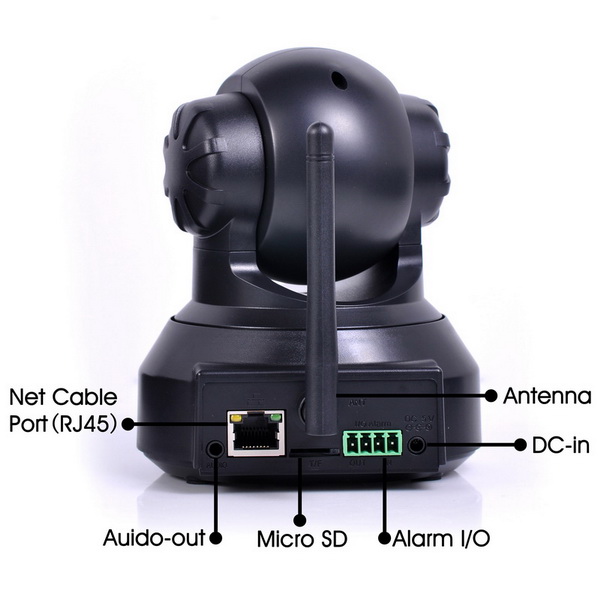

| Communication | Ethernet Interface | Built-in 10/100Mbps, Auto MDI/MDIX, RJ-45 |
| Supported Protocol | HTTP, FTP, TCP/IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS | |
| Wireless Standard | IEEE 802.11b/g | |
| Data Rate | 802.11b: 11Mbps(Max.), 802.11g: 54Mbps(Max.) | |
| Wireless Security | WEP & WPA WPA2 Encryption | |
| Physical | Pan/Tilt Angle | Pan: 350-Degree, Tilt: 120-Degree |
| Alarm Input | One Channel On/Off Iutput | |
| Alarm Input | One Channel On/Off Output | |
| Infrared Light | LED Illuminators for Night Vision | |
|
Storage |
By Micro-SD card |
Yes, record plan can be set |
|
Manage Software |
App |
iOS, Android |
|
Software |
PC (Windows) |
|
|
Alarm Features |
Motion Detection |
Yes |
|
Email alert |
Yes, by sending captured photos via email |
|
|
FTP alert |
Yes, by sending captured photos to preset FTP |
|
| Power | Power Supply | DC12V/2.0A |
| Power Consumption | 7 Watts (Max.) | |
| Environment | Operating Temp. |
0℃ - 55℃(14°F - 131°F) |
| Operating Humidity | 20% - 85% Non-Condersing | |
| Storage Temp. |
-10℃ - 60℃(14°F – 140°F) |
|
| Storage Humidity | 0% - 90% Non-Condersing | |
| PC Requirements | CPU | 2.0GHZ or Above (Suggested 3.0GHz) |
| Memory | 256MB or Above (Suggested 1.0GB) | |
| Display Card | 64M or Above | |
| Supported OS |
Microsoft Windows 2000/XP/Vista/7, Apple Mac |
|
1 x IP camera
1 x Antenna
1 x Power adapter
1 x Network cable( Not included, optional)
1 x Quick Start Guide
1 x CD
Some screws
1 x Antenna
1 x Power adapter
1 x Network cable( Not included, optional)
1 x Quick Start Guide
1 x CD
Some screws
