5.6 inch MustHD Field Monitor Quick Start Guide
Get Started

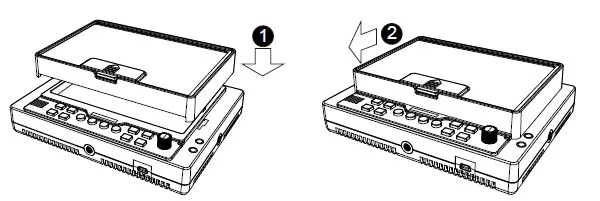

[1] Install Sun-Hood Cover to the Monitor

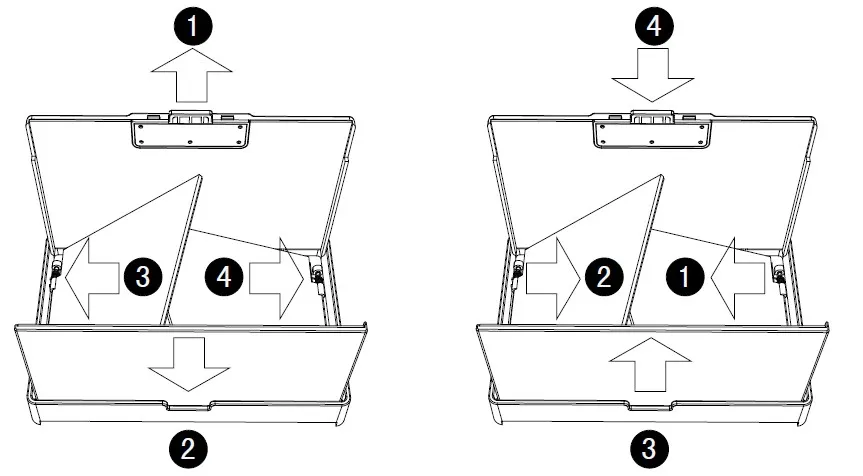

[2] Open / Close the Sun-Hood
Please follow the step sequence to open or close the hood!
Open the Sun-Hood Close the Sun-Hood

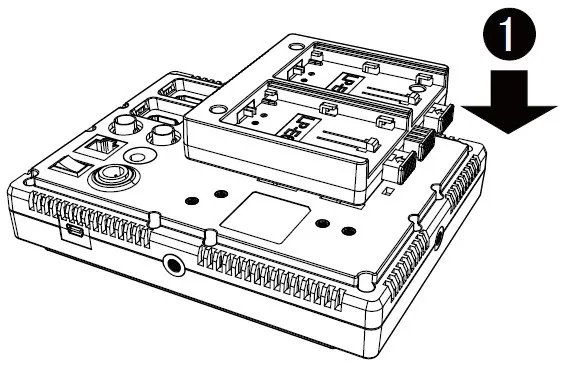

[3] Install Battery Plate on to the Monitor
The following illustration is based on LP-E6 battery. F970/D28S are basically the same.

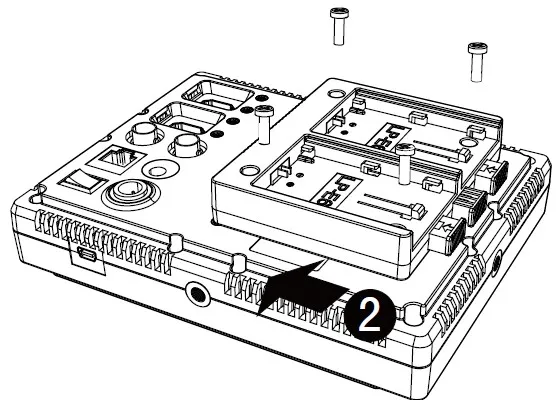

Put the Plate at the right position on the monitor back cover.
Slide it backwardly to the utmost.
If needed, use the four screws that come with the package to fix the Plate more tightly.
[4] Uninstall Battery Plate from the Monitor
The following illustration is based on LP-E6 battery. F970/ D28S are basically the same.

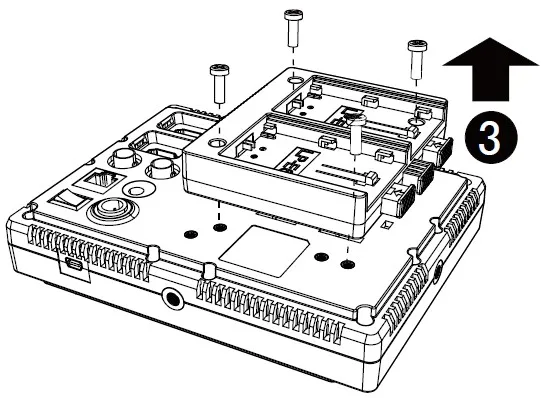

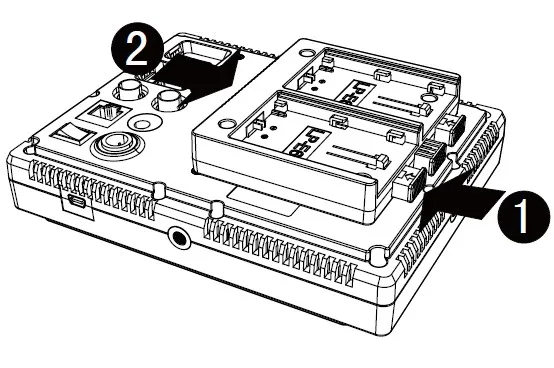

Press the lock button (do not release the press) while pushing the Plate outwardly.
Take it upwardly.
[5] Install Battery on to the Battery Plate
The following illustration is based on LP-E6 battery. F970/ D28S are basically the same.

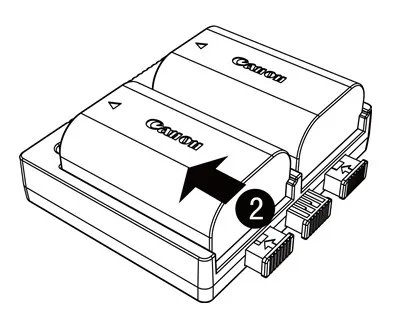

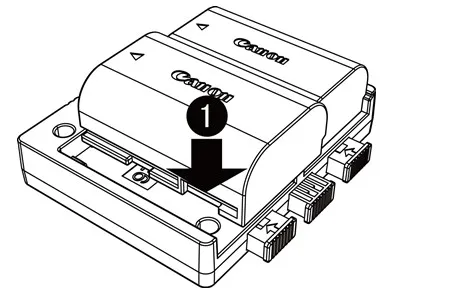

Put the battery in right position on the Plate.
Push it inwardly to the utmost.

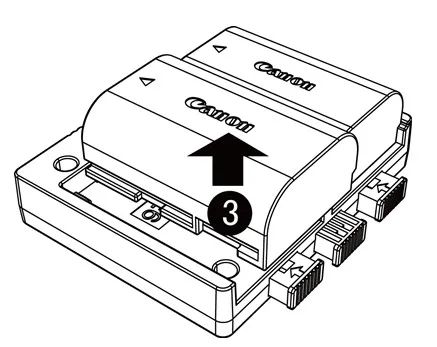

[6] Uninstall Battery from the Battery Plate
The following illustration is based on LP-E6 battery. F970/ D28S are basically the same.

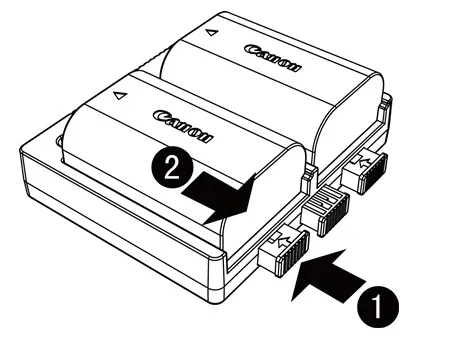

1) Press the lock button inwardly (do not release the press) while pushing the battery outwardly.
Take the battery upwardly.

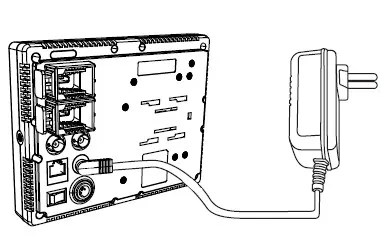

[7] Connect DC Power Supply from the Battery Plate
You can also use external DC power by using the adaptor that comes with the package. Please only use the adaptor that comes with the machine; otherwise there maybe potential risk.
[8] Fix HDMI Connector

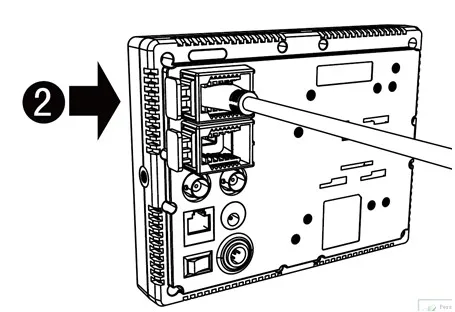

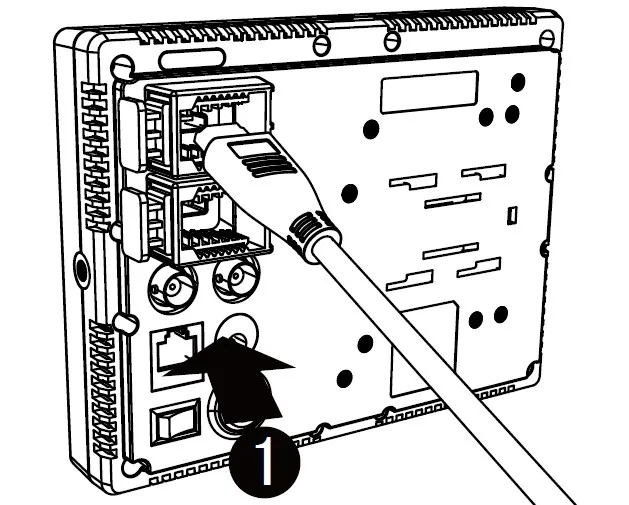

The uniquely-designed HDMI locking mechanism can eliminated accidental disconnection completely.
