Car Head Up Display (HUD) with super bright digital display, Speedometer, Tachometer, Remote etc
Model No: EM05
* Plug-and-play
* Speedometer
* Tachometer
* Engine rotate speed
* Fuel consumption
* Battery voltage
* Remote control

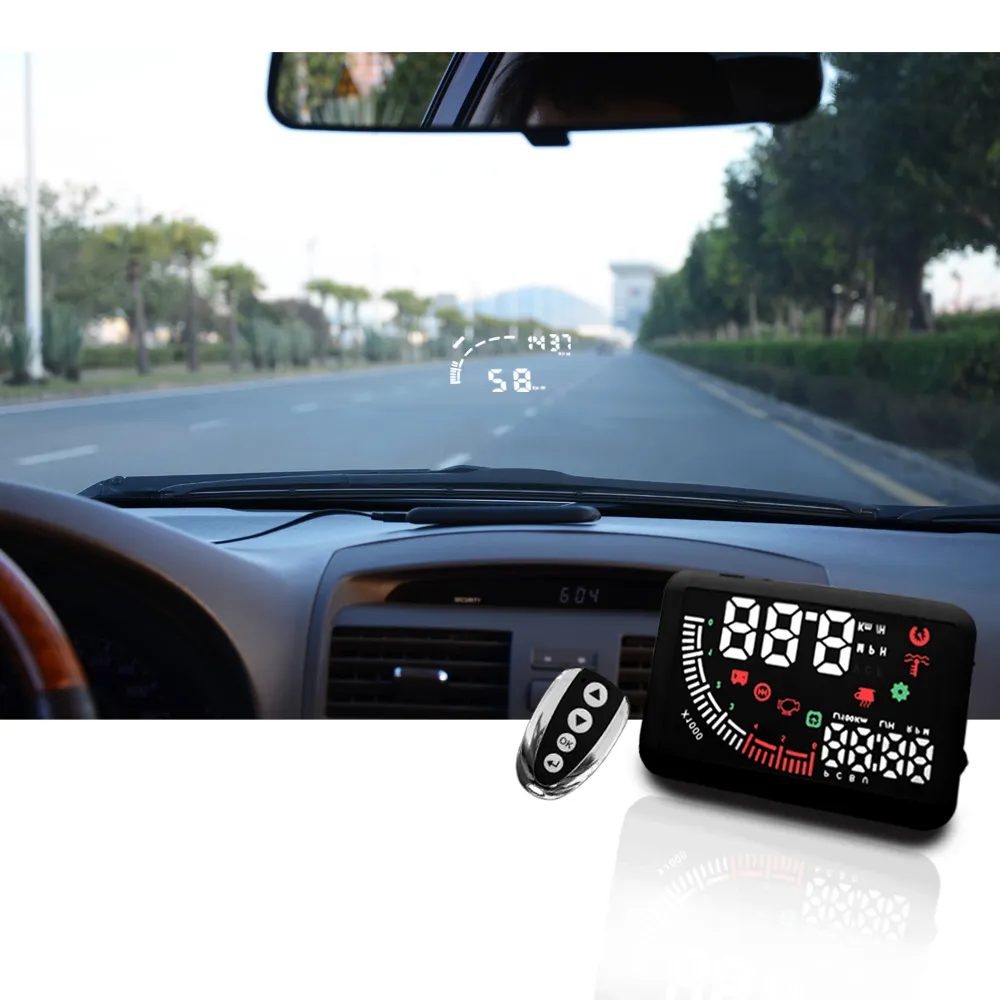

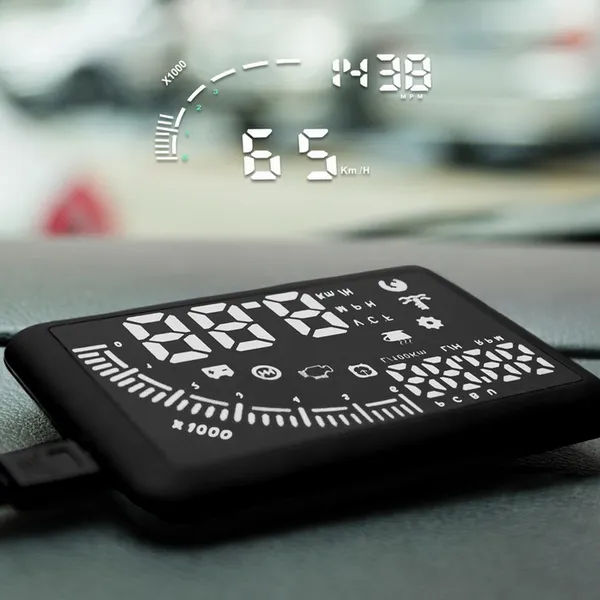

This is the device that projects important data onto the windshield directly in front of a driver’s line of sight, enabling continuous road awareness. It secures to a dashboard using a non-slip mat and plugs into your car’s On Board Diagnostic System II interface (OBD II) with the included 62"-long cable and projects MPH, engine rotation speed (RPM), battery voltage, fuel consumption (MPG), and water temperature. Its built-in clock measures how much time a driver has spent behind the wheel and provides alerts for taking a break. For manual transmissions or new drivers, the device alerts when it’s time to up or downshift. The device’s projected data adjusts in brightness automatically to suit driving conditions (can also be adjusted manually). 5 1/4" L x 3 1/2" W x 1/2" D. (4 oz.).

Video:

https://www.youtube.com/watch?v=dgdAPxRaFWk

https://www.youtube.com/watch?v=w2XvSjg8yiU

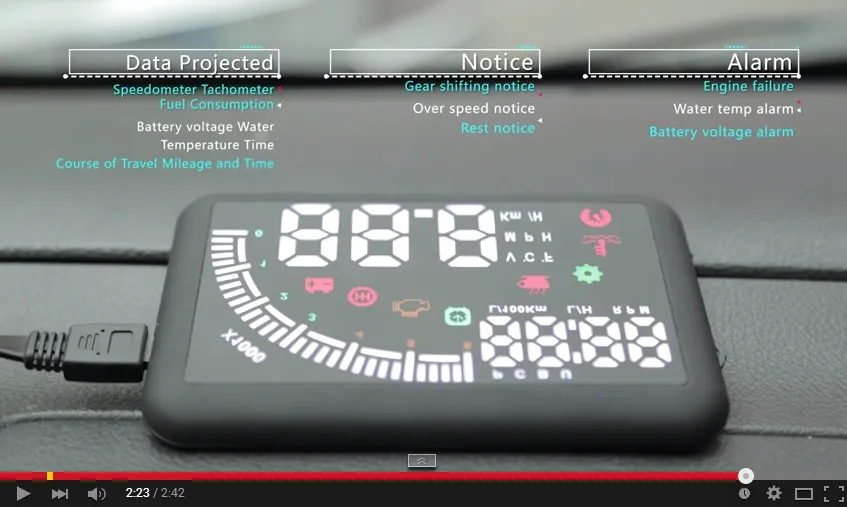

Car HUD
* Car Head UP Display, Car HUD, Plug and Play, KMH / MPH. Speedometer, Over speed Warning, High Brightness

* Easy installation, Plug-and-play. Automatically adapt to automobile models with OBD II (Bus Automatic Diagnostic System) interface.

* Display engine speed, speed, voltage, temperature, fuel consumption and other information on the front windshield of the driver's eye level.

* Over-speed warning, bringing more security for driving. Precise, HD and high-brightness LED display, easy to read.

* Gear shift warning, helpful to new drivers. Display brightness can be automatically or manually adjusted.


Specifications:

Display: LED Digital
Environment Temperature: -40 ~ +80 degree Celsius at atmospheric pressure 86-106KPa
Alarm Sound Level: over 30db
Working Voltage: 12V DC-in

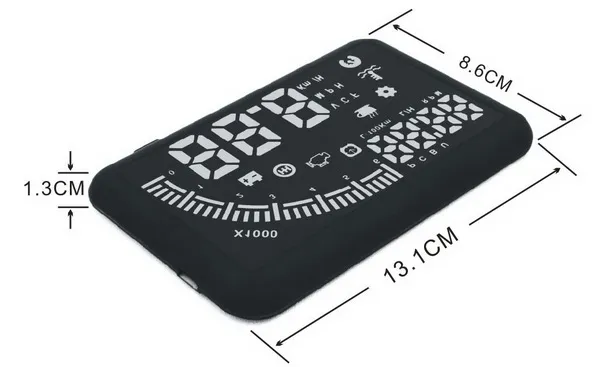

Product Size: 132x86x12mm
Product weight: 85g
Package Weight: 490g

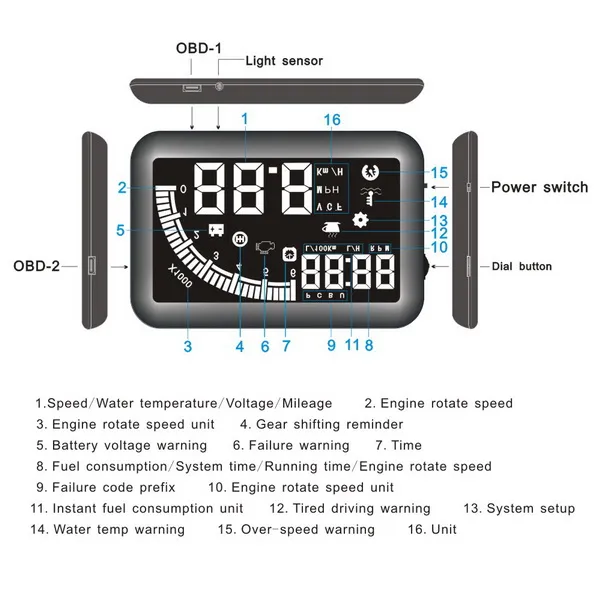

Date Projected:
1) Speed, Over-speed Warning
2) Engine Rotate Speed
3) Time
4) Water Temperature
5) Battery Voltage
6) Instant Fuel Consumption
7) Average Fuel Consumption
8) Running Time
9) Mileage
10) Engine Fault Code Alert
11) Gear Shifting Reminder
12) Tired Driving Indication
13) Other Functions: Setup discharge capacity and calibration on fuel consumption and speed per hour. It can also setup failure scan by auto or manual.
14) Remote Control: The first HUD with remote control

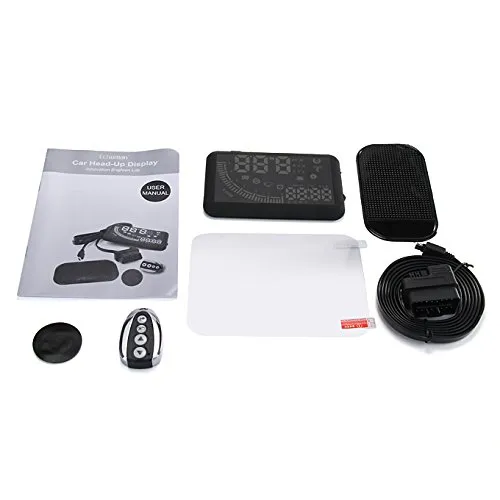

1x HUD
1x OBD Connecting Line
2x Polarizing Film
1x Non-slip Mat (for HUD and Remote Control)
1x English User Manual

Video:

https://www.youtube.com/watch?v=dgdAPxRaFWk

https://www.youtube.com/watch?v=w2XvSjg8yiU
