MustHD 7" 1920x1200 Full HD HDMI On-camera Field Monitor for Professional Videographers
Model No: M702H
• 1920 x 1200 FullHD 7" IPS Panel
• HDMI Input/Loop-through, Composite input
• Luminance of 450cd/m² (450 nits)
• Focus Assist / Peaking Color RGB
• False Color for Under/Over Luminance Warning
• Histogram and Zebra
• Pixel-to-Pixel
• Zoom (from 10-90%)
• R/G/B/Gray-only display
• H/V Mirror
• 3 Button Programmable Wired Remote
• Four 1/4”-20 Thread Mounting Holes
• Speaker & Headphone Output
• Tally
• HDMI Input/Loop-through, Composite input
• Luminance of 450cd/m² (450 nits)
• Focus Assist / Peaking Color RGB
• False Color for Under/Over Luminance Warning
• Histogram and Zebra
• Pixel-to-Pixel
• Zoom (from 10-90%)
• R/G/B/Gray-only display
• H/V Mirror
• 3 Button Programmable Wired Remote
• Four 1/4”-20 Thread Mounting Holes
• Speaker & Headphone Output
• Tally
MustHD M702H is a professional grade field monitor with HDMI input and loop-through support. The 7" 1920 x 1200 pixel IPS screen combined with 450 cd/m² (450 nits) brightness and a 1100:1 contrast ratio provide a crisp image clear image. The 178° horizontal and 178° vertical viewing angles make it easy to see even at an angle helping to insure accurate video capture.
The HDMI input/loop-through support a camera signal of up to 1080p@60fps for excellent capture flexibility.

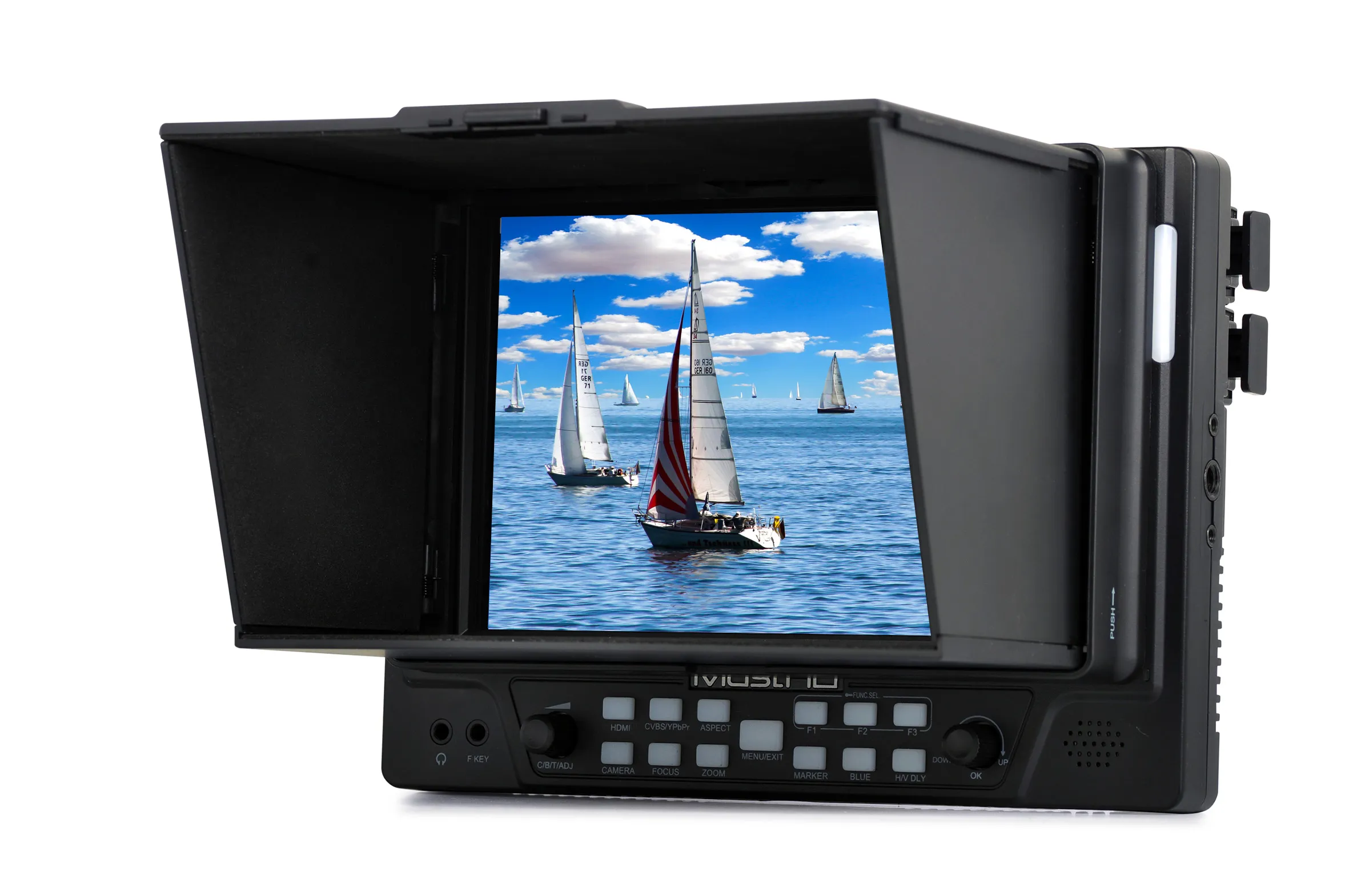

Its detachable folding sun-hood helps when shooting in bright locations and also protects the screen in transit.
The M702H can be powered on battery or DC 12V power adapter. It is compatible with Sony F970/Canon LP-E6/Panasonic D28S/V/A mount batteries via battery plates. The standard battery plate is Sony F970 battery plate. If you need others plates, please select them from the option list.
The advanced software features and multiple input/output options make it the perfect monitor for a professional videographer that does not require 3G-SDI.
The HDMI input/loop-through support a camera signal of up to 1080p@60fps for excellent capture flexibility.
Its detachable folding sun-hood helps when shooting in bright locations and also protects the screen in transit.
The M702H can be powered on battery or DC 12V power adapter. It is compatible with Sony F970/Canon LP-E6/Panasonic D28S/V/A mount batteries via battery plates. The standard battery plate is Sony F970 battery plate. If you need others plates, please select them from the option list.
The advanced software features and multiple input/output options make it the perfect monitor for a professional videographer that does not require 3G-SDI.
Focus Assist (Peaking Red/Green/Blue)
Help shooters to easily find out the exact area in the picture with good focus by adding sharp red (green/blue) outline on the shape or boundaries of the object in the picture. The shooter adjusts the focus control until the red indicator outlines on the desired area are sharp, indicating optimal focus.
Histogram
The Histogram provides a graphic depiction of how many pixels in your image are at each level between black and white. This provides you exposure information so you can objectively judge how much of your image is clipping, falling into the shadows, or being captured faithfully.
False Color
The false color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Marker
You can set the display marker mode, 16:10, 16:9, 15:9, 1.85:1 and 4:3 and also set the marker color, thickness and transparency. Image below shows the 2.35:1 marker.
H/V Mirror
Other Software Features
Help shooters to easily find out the exact area in the picture with good focus by adding sharp red (green/blue) outline on the shape or boundaries of the object in the picture. The shooter adjusts the focus control until the red indicator outlines on the desired area are sharp, indicating optimal focus.
Histogram
The Histogram provides a graphic depiction of how many pixels in your image are at each level between black and white. This provides you exposure information so you can objectively judge how much of your image is clipping, falling into the shadows, or being captured faithfully.
False Color
The false color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Marker
You can set the display marker mode, 16:10, 16:9, 15:9, 1.85:1 and 4:3 and also set the marker color, thickness and transparency. Image below shows the 2.35:1 marker.
H/V Mirror
Other Software Features
Specifications:
| LCD | Size | 7 inches, IPS panel |
| Resolution | 1920*1200 Native | |
| Pixel Pitch | 0.078（W）x0.078(H)mm | |
| Viewing Angle | H: 178 degrees ; V: 178 degrees | |
| Luminance | 450 cd/㎡ | |
| Contrast Ratio | 1100:1 | |
| Display Area | 151.2 (H) x 94.5(W)mm | |
| Input | 1xHDMI | 480i/480p/576i/576p/720p/1080i/1080p@60fps |
| 1xComposite | CVBS | |
| 1xLAN(RJ45) | TALLY | |
| Output | 1xHDMI | 480i/480p/576i/576p/720p/1080i/1080p@60fps |
| Audio In |
Analog Stereo(phone jack) Internal speaker (Mixed Mono) |
|
| Power | DC 6-20V | |
| Power Consumption (Approx) | 8W | |
| Operating Temperature | 0℃to 45℃ (32℉ to 113℉) | |
| Storage Temperature | -20℃to 60℃ (14℉ to 140℉) | |
| Main Body Dimension (mm/inch) | 197.5x143.6x50.6 (7.78x5.65x1.99) | |
| Weight | 480g | |
| Accessories |
1. DC Power Adapter (US/EU/UK/AU) 2. User Manual 3. Programmable Wired Remote 4. Sony F970 Battery Plate 5. Screws(for fixing the battery plate tightly) 6. HDMI A to C Type Cable 7. V-mount Battery Plate(optional) 8. Anton Mount Battery Plate (optional) 9. Carrying bag(optional) |
|
1. M702H Monitor with Sunhood x 1
2. DC Power Adapter x 1 (US/EU/UK/AU)
3. User Manual x 1
4. Programmable Wired Remote x 1
5. Sony F970 Battery Plate x 1
6. Screws(for fixing the battery plate tightly) x 8
7. HDMI A to C Type Cable x 1
2. DC Power Adapter x 1 (US/EU/UK/AU)
3. User Manual x 1
4. Programmable Wired Remote x 1
5. Sony F970 Battery Plate x 1
6. Screws(for fixing the battery plate tightly) x 8
7. HDMI A to C Type Cable x 1
